Wire wizard

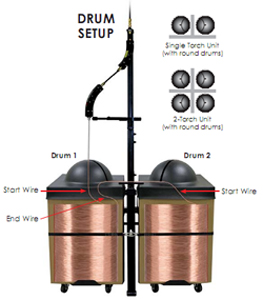

A unique process joins the end wire from a used drum with the start wire of a new full drum. Both butt-welding and flash removal operations take only seconds and the two wire ends may be joined during the welding cycle.


  • ■ Eliminates downtime for wire changeover.
  • ■ No operator action needed - robots can continue to weld while the next full drum is being installed.
  • ■ Designed for use with optional Wire Pilot Feed Assist & Wire Guide Modules®
  • ■ Works with one or two-station robotic cells.(2 or 4 drums)
  • ■ Accepts any fiber drum or cardboard wire packaging design.
  • ■  Appropriate drum-handling carts available.


Wire wizard

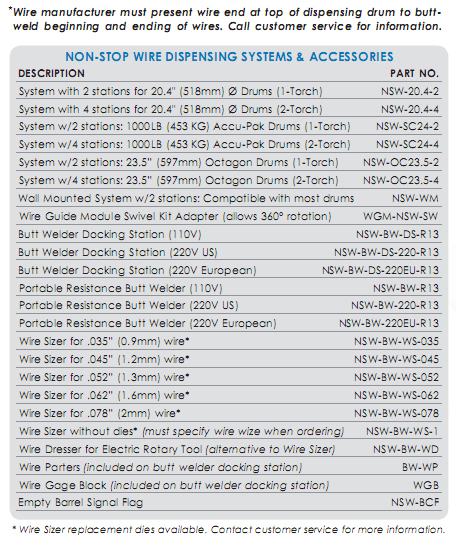

wire wizard data

Related products

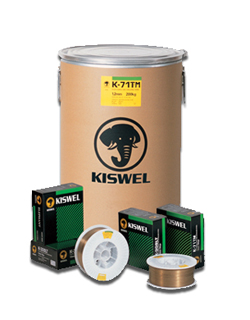

welding consumables
